Hãng | GIGABYTE | |||||||
Loại | Bo mạch chủ - Dành cho máy bàn (PC) | |||||||

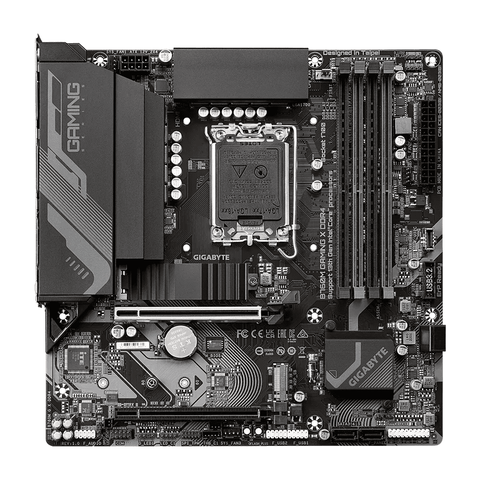

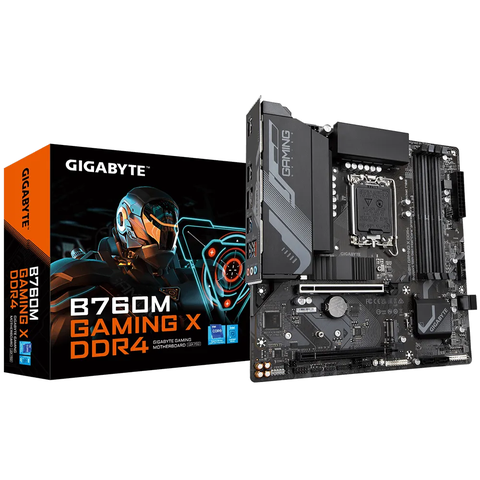

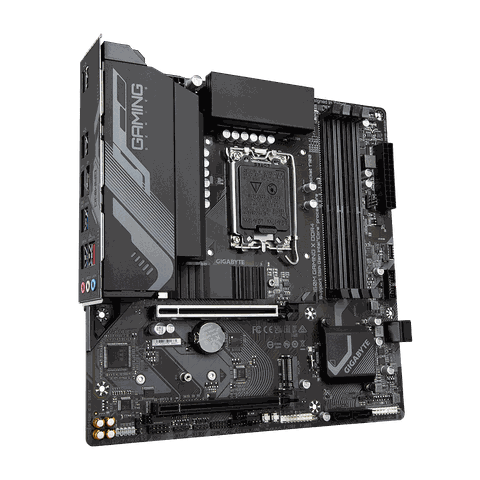

Mainboard | B760M GAMING X DDR4 | |||||||
Socket | LGA 1700 | |||||||
CPU hỗ trợ | Hỗ trợ Intel Core 12th, 13th, 14th Processors | |||||||
Chipset | Intel B760 | |||||||
Bus RAM Hỗ Trợ |
- Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s - 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
|||||||
Khe cắm mở rộng | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|||||||
Ổ cứng mở rộng | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|||||||
USB | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|||||||
Cổng kết nối (Internal) | - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 3 x system fan headers - 2 x addressable LED strip headers - 2 x RGB LED strip headers - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x S/PDIF Out header - 1 x USB Type-C® header, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 2 x Thunderbolt™ add-in card connectors - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x serial port header - 1 x reset button - 1 x Q-Flash Plus button - 1 x reset jumper - 1 x Clear CMOS jumper |
|||||||

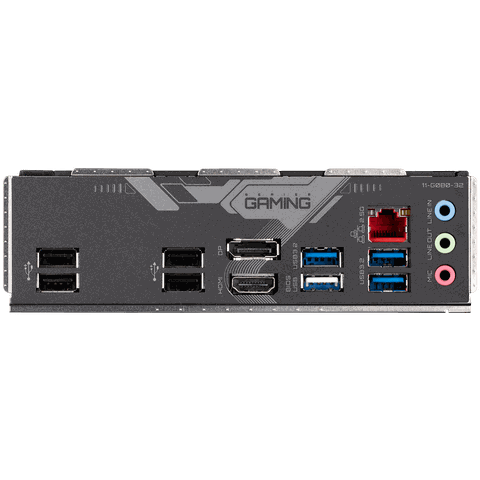

Cổng kết nối (Back Panel) |
- 3 x USB 3.2 Gen 1 ports |
|||||||
Cổng LAN | Intel® 2.5Gbps LAN | |||||||
Kích cỡ |
M-ATX Form Factor; 24.4cm x 22.5cm |
