Hãng | Asus | |||||||
Loại | Bo mạch chủ - Dành cho máy bàn (PC) | |||||||

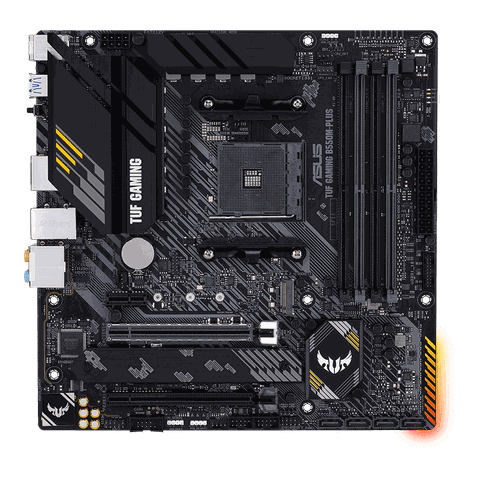

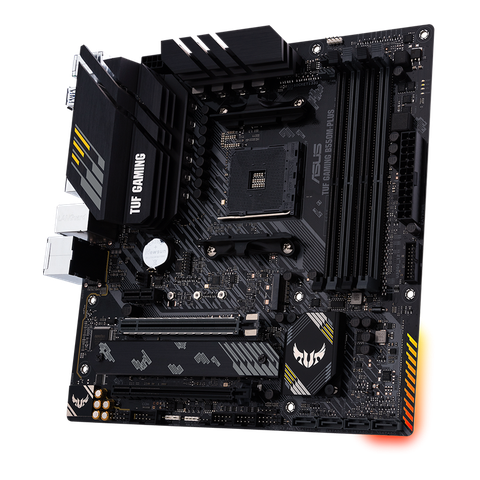

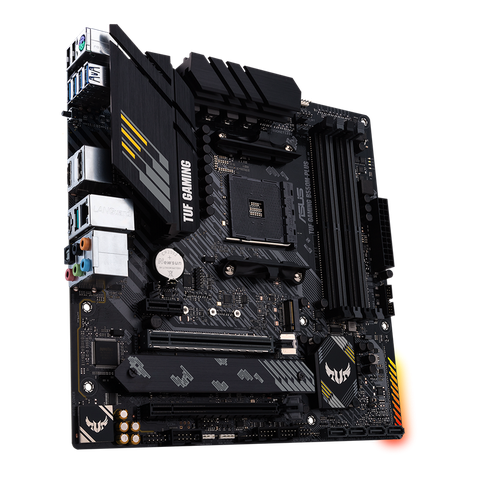

Mainboard | TUF GAMING B550M-PLUS (WI-FI) | |||||||
Socket | AM4 | |||||||
CPU hỗ trợ | Hỗ trợ CPU AMD đến thế hệ Zen 5 | |||||||
Chipset | AMD B550 | |||||||
Bus RAM Hỗ Trợ |
- 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/ |
|||||||
Khe cắm mở rộng |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors |
|||||||
Ổ cứng hỗ trợ | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset - M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) - 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|||||||
USB | Rear USB:Total 8 ports - 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|||||||
Cổng kết nối (Internal) | - 1 x CPU Fan connector(s) - 1 x CPU OPT Fan connector(s) - 2 x Chassis Fan connector(s) - 2 x Aura RGB Strip Headers - 1 x Addressable Gen 2 header(s) - 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) - 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) - 1 x SPI TPM header - 4 x SATA 6Gb/s connector(s) - 1 x 24-pin EATX Power connector(s) - 1 x 8-pin EATX 12V Power connectors - 1 x Front panel audio connector(s) (AAFP) - 1 x Clear CMOS jumper(s) - 1 x System panel connector - 1 x COM port header - 1 x Speaker connector |
|||||||

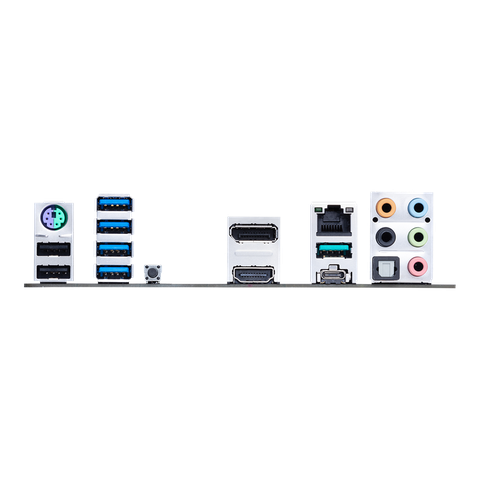

Cổng kết nối (Back Panel) |
- 1 x PS/2 keyboard/mouse combo port(s) - 1 x DisplayPort - 1 x HDMI - 1 x LAN (2.5G) port(s) - 2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) - 2 x USB 2.0 - 4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™) - 1 x Optical S/PDIF out - 5 x Audio jack(s) - 1 x BIOS FlashBack™ Button(s) |
|||||||
Cổng LAN | Realtek RTL8125B 2.5Gb Ethernet TUF LANGuard | |||||||
Kích cỡ |
M-ATX Form Factor; 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
