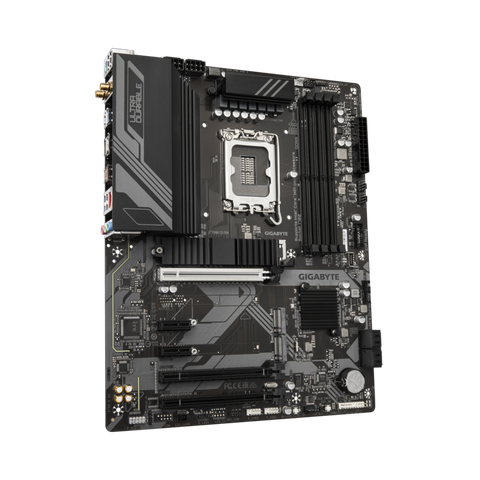

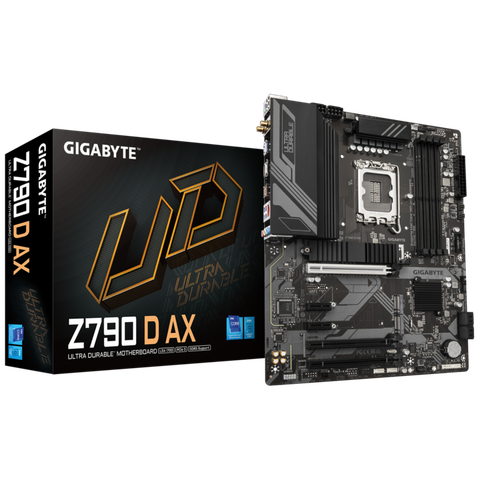

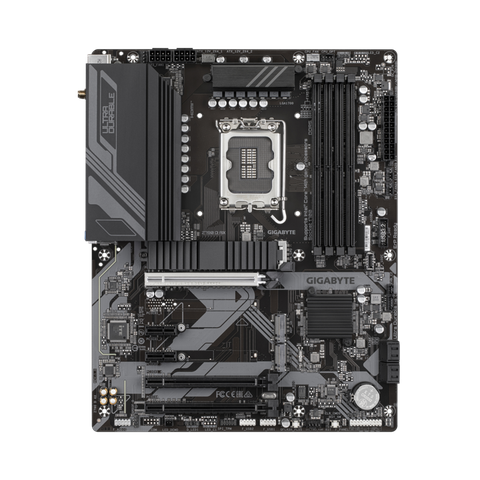

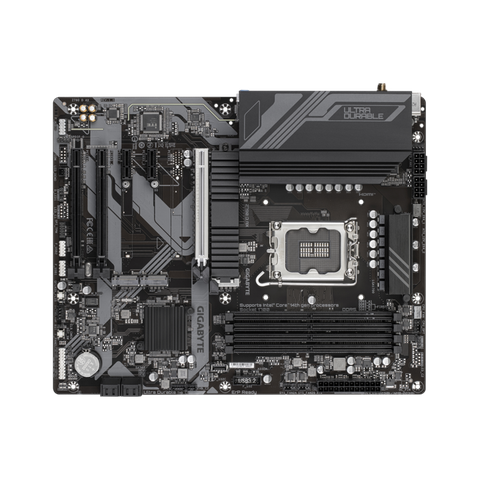

Mainboard Gigabyte Z790 D AX

So sánh

5.990.000₫ ~~8.390.000₫~~

Quà tặng/Khuyến mãi (Áp dụng khi mua Laptop)

Tặng Windows 11 bản quyền theo máy (Laptop Mới 100%)
Tặng Balo thời trang
Tặng Chuột không dây + Bàn di cao cấp
Tặng gói cài đặt, bảo dưỡng, vệ sinh máy trọn đời

Số lượng

Thông số sản phẩm:

Chipset: Intel Z790
Socket: Intel LGA 1700
Hỗ trợ CPU Intel® Core™ Gen 14, 13, 12
Kích thước: ATX
Số khe RAM: 4 khe DDR5

Yên tâm mua sắm tại TCL

Chất lượng sản phẩm là hàng đầu
Dùng test máy 15 ngày đầu lỗi 1 đổi 1
Hỗ trợ và hậu mãi sau bán hàng tốt nhất
Hỗ trợ trả góp lãi suất thấp
Giao hàng toàn quốc nhanh nhất

Trụ sở chính:
Cơ sở 1: 153 Lê Thanh Nghị, Hai Bà Trưng, Hà Nội
Cơ sở 2: 35/1194 đường Láng, Đống Đa, Hà Nội

Email:

Hotline: 0965 821 551 - 0963 165 551 - 0911 390 666

Gọi ngay 0911 390 666 để được tư vấn tốt nhất!

Tình trạng: Còn hàng

Thương hiệu: Gigabyte

Loại: Intel Z790 (LGA 1700)

Thông số kỹ thuật

Cấu hình

Hãng	Gigabyte
Loại	Bo mạch chủ - Dành cho máy bàn (PC)
Mainboard	Z790 D AX
Socket	LGA1700
CPU hỗ trợ	Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset	Intel Z790
Bus RAM Hỗ Trợ-	14th and 13th Generation Intel® Core™ i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules - 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules
Card đồ họa tích hợp	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

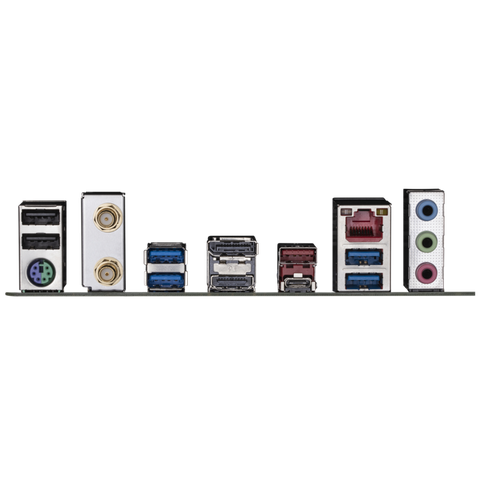

Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Cổng LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Mạng không dây	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard
Âm thanh	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
