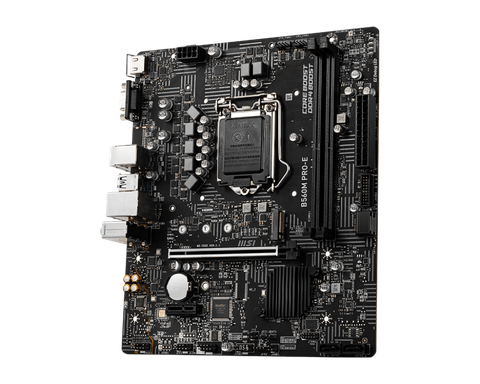

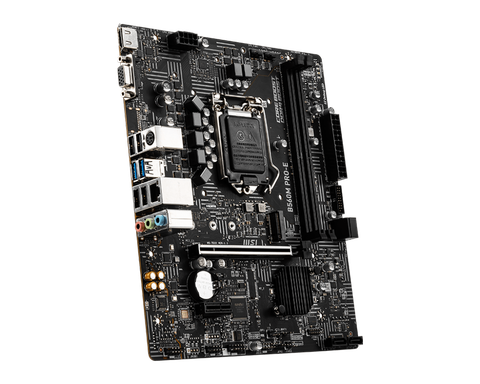

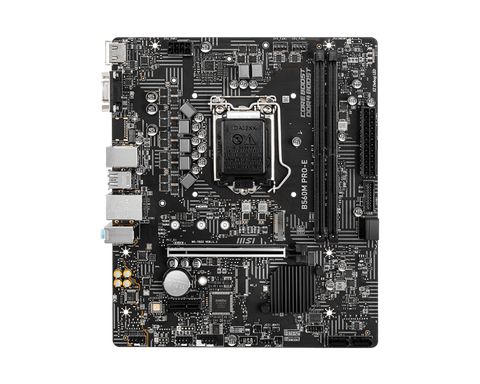

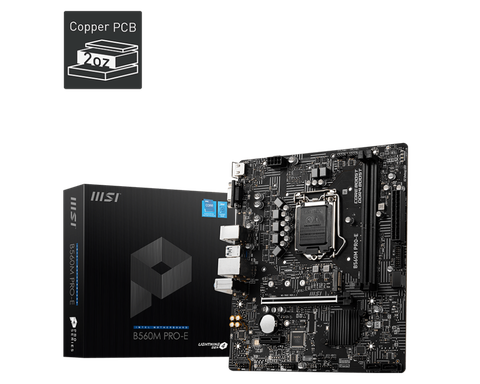

Mainboard MSI B560M PRO-E

- 2 x DDR4 memory slots, support up to 64GB¹
- Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel^® CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel^® CPU (by JEDEC & POR)
- Max overclocking frequency:

• 1DPC 1R Max speed up to 4800 MHz
• 1DPC 2R Max speed up to 4600+ MHz

- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel^® Extreme Memory Profile (XMP)

1x PCIe x16 slot (From CPU)

• Support up to PCIe 4.0 for 11th Gen Intel^® CPU
• Support up to PCIe 3.0 for 10th Gen Intel^® CPU

1x PCIe 3.0 x1 slot (From PCH)

Intel^® B560 Chipset
- 4x SATA 6Gb/s ports (From B560 Chipset)
- 1 x M.2 slot (Key M)
M2_1 slot (From B560 Chipset)

• Supports up to PCIe 3.0 x4

• Supports 2242/ 2260/ 2280 storage devices

- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel,2 ports available through the internal USB 2.0 connectors)

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Serial port connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x TPM module connector

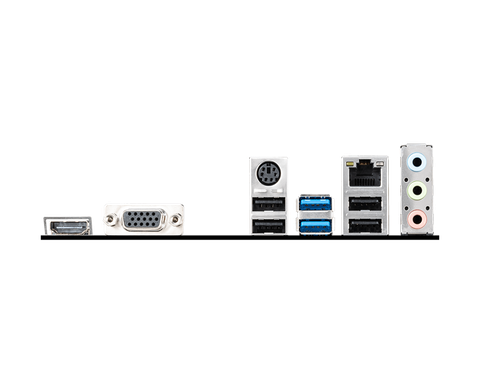

- HDMI™
- VGA
- Mouse / Keyboard
- LAN port
- Audio connector
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0

M-ATX Form Factor; 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
