Hãng | MSI | |||||||
Loại | Bo mạch chủ - Dành cho máy bàn (PC) | |||||||

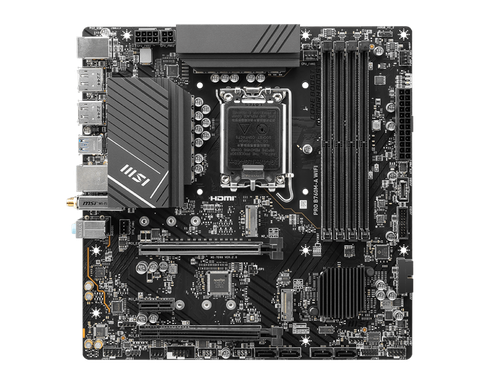

Mainboard | PRO B760M-A WIFI DDR5 | |||||||
Socket | LGA1700 | |||||||
CPU hỗ trợ | Hỗ trợ CPU Intel® Core™ Gen 12th & 13th Processors | |||||||
Chipset | Intel H610 | |||||||
Bus RAM Hỗ Trợ | - 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz - Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz |
|||||||
Khe cắm mở rộng | - 2 x PCI-E x16 slot - 1 x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|||||||
Ổ cứng hỗ trợ | - 2 x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices - 4 x SATA 6G |
|||||||
USB | - 2 x USB 2.0 (Rear) - 4 x USB 2.0 (Front) - 2 x USB 3.2 Gen1 Type A (Rear) - 4 x USB 3.2 Gen1 Type A (Front) - 1 x USB 3.2 Gen1 Type C (Front) - 2 x USB 3.2 Gen2 Type A (Rear) |
|||||||
Cổng kết nối (Internal) | - 1 x Power Connector(ATX_PWR) - 2 x Power Connector(CPU_PWR) - 1 x CPU Fan - 1 x Pump Fan - 2 x System Fan - 2 x Front Panel (JFP) - 1 x Chassis Intrusion (JCI) - 1 x Front Audio (JAUD) - 1 x Com Port (JCOM) - 2 x Addressable V2 RGB LED connector (JARGB_V2) - 1 x RGB LED connector(JRGB) - 1 x TPM pin header(Support TPM 2.0) - 4 x USB 2.0 ports - 4 x USB 3.2 Gen1 Type A ports - 1 x USB 3.2 Gen1 Type C ports |
|||||||

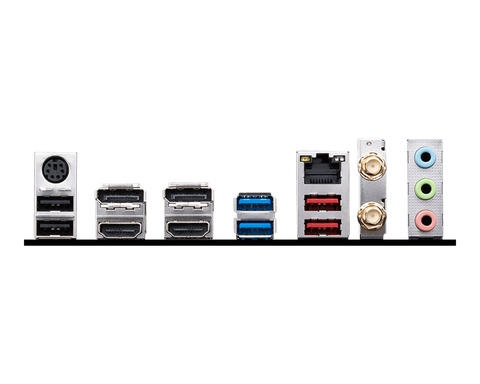

Cổng kết nối (Back Panel) |
- Keyboard / Mouse - DisplayPort - USB 3.2 Gen 1 5Gbps (Type-A) - 2.5G LAN - Wi-Fi / Bluetooth - Audio Connectors - USB 2.0 - HDMI™ - USB 3.2 Gen 2 10Gbps (Type-A) |
|||||||
Cổng LAN | Realtek® RTL8125BG 2.5G LAN | |||||||
Mạng không dây | - Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps - Supports 802.11 a/ b/ g/ n/ ac/ ax - Supports Bluetooth® 5.3, FIPS, FISMA |
|||||||
Kích cỡ | M-ATX Form Factor; 243.84mm x 243.84mm |
